PANTO – Accommodation pantograph door

Machined out of one piece of aluminium

  • Very good looking, slim, flush and luxurious door
  • Firm and elegant movements
  • Smartly placed pantograph arms for minimal obstruction and roam for a window
  • Accurate, solid and lightweight design.
  • ‘Plug and play’ The door, the frame and the parts are fully assembled and tested in the factory and will be delivered ready for installation
  • The door can be certificated by all major classification societies.
  • Weather tight pantograph door

Options and extra’s
  • Bolted frame
  • Insulation with cover plate
  • Window
  • Electric operated
  • The door or frame in steel or stainless steel
  • The door shaped according the yachts form
  • Fully finished, with filler and paint
  • Other dimensions than standard
  • Certification by major classification societies

Smartly placed pantograph arms

PANTO – Technical Specification

The PANTO door is machined out of seawater resistant aluminium 5083. The door is fitted out with stainless steel 316L heavy duty operating arms. The door is a proven Newthex design. It is fitted out with high quality Newthex parts and a stainless steel pin central operating NEXT closing and locking system. When closed, the door is flush with the outer structure, Weather tightness is achieved by the Newthex special designed V-shape seal.

Sigmacover is applied at all aluminium parts. Stainless steel is pickled and passivated. Stainless parts in sight are polished according “Mirror 8” Galvanic corrosion protection is achieved by using TEF-Gel, Sika ex 291, Lexan insulation sheets and synthetic inserts wherever applicable.

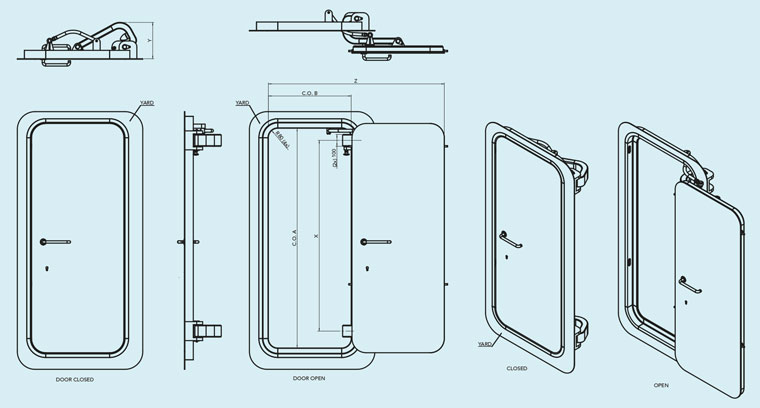

The door is designed with Solid Works 3D software and strength calculations are carried out with Cosmos Works. Door, frame, operating parts and cover plate are fully assembled, adjusted and tested in the factory. The door will be delivered within the frame and ready for welding or bolting into the yacht’s structure. The door can be delivered with certificates of all major classification societies.

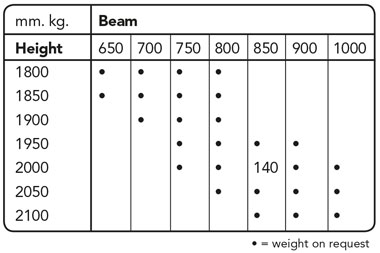

Measures and weights: (Other dimensions on request)
