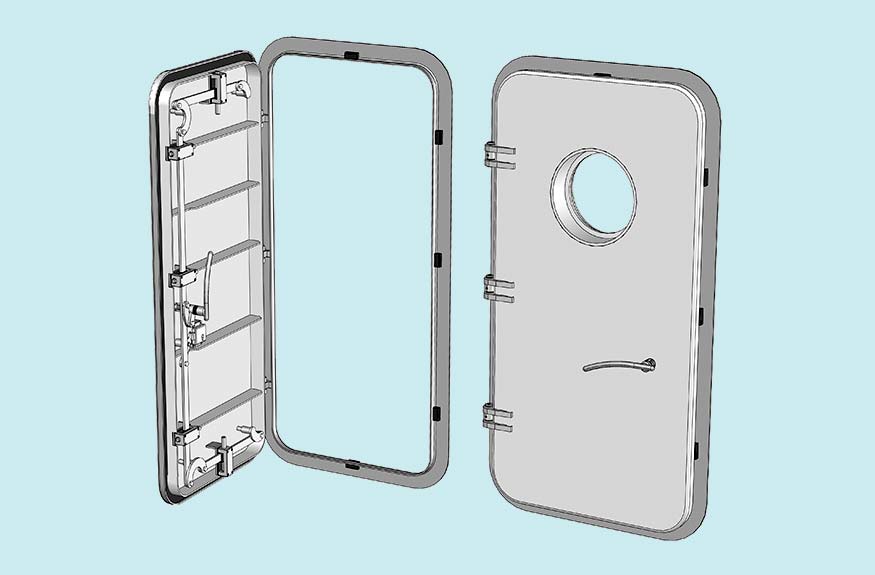

Hinged Watertight Door

Watertight and weathertight, manually operated doors are vital to the safety of every naval vessel. In the event of a breach in the hull accompanied by major systems failure, hand operated watertight doors enable the crew to preserve the integrity of the ship even when the electricity supply is compromised.

Newthex is proud of its Next Door range of manual, watertight doors. Built to the highest specifications, they are simple to operate, strong and reliable and, with stainless steel closing mechanisms and self-lubrication bearings, require minimal maintenance. Instead of the usual handwheel locking mechanism, Newthex Next watertight doors are fitted with a single handle that, when used in combination with our Next closing system, allows them to be operated with one hand instead of two. This benefits the operator and saves valuable time in the event of an emergency. Independent light sources in the handles that activate in the event of a blackout are available as an option.

  • Hinged Watertight Door

  • Hinged Watertight Door

  • Hinged Watertight Doors

Deliverable in non-standard dimensions and large quantities

Newthex has the capacity to produce large quantities of doors for major projects that are designed for easy, plug-and-play installation. The frames can be fabricated in various grades of steel, stainless steel or aluminium, and can be either welded or bolted in position.

Options and Extra’s
  • Watertight up to 15mwc, higher on request
  • Gas tight
  • RCS Radar cross section
  • Shockproof
  • Flush execution
  • Armoured / bullet proof
Navy services

Service Agreements

To keep the doors, hatches and elevators on board in a good shape and to reduce your maintenance cost, Newthex can offer service agreements. These agreements will also improve the safety on board.


Newthex provides class room and on board training to your technical staff. These courses are about usage, safety, maintenance and trouble shooting. Newthex provides manuals and instruction booklets.
